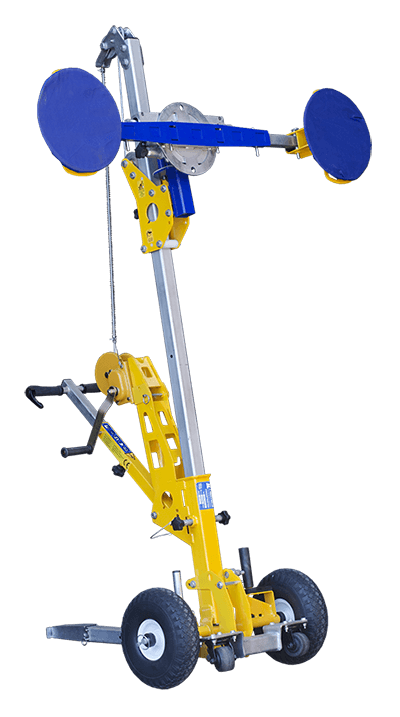

EXPRESS 200S

200 Kg (440 Lbs)

The Express 200S is designed to allow glaziers to unload, transport and install large plates of glass.

  • Lifting capacity up to 200kg
  • 2 x 300mm adjustable and flexible vacuum cups
  • Holds glass up to 3660mm x 1500mm
  • Rotates glass 360°
  • Pivots glass 90° to the side for small doorways
  • Mast extendable by 250mm
  • Wheel base extendable for better stability
  • Portable for on-site glazing
  • Side shifter for precise Installation
  • Assembles in minutes


Can also handle:

  • Composite panels
  • Steel
  • Granite/Marble
  • Plastics
  • Wood doors

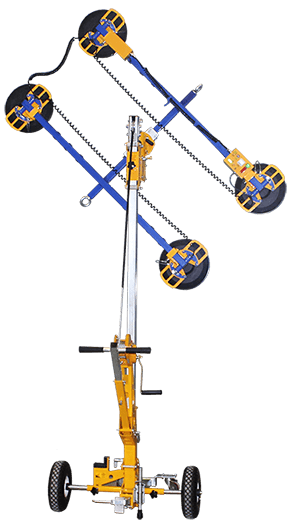

Express 200S Auto Option

Quattrolifts offers an upgrade which allows for the attachment of a battery and vacuum pump and controller. This feature, combined with a H frame (lifting arm) and extra vacuum cups allows for the lifting arm (H frame) to be detached from the machine and raised using a crane (below the hook lifter).

Additional Options

  • Vacuum Cups for Curved Glass
  • Lower Vacuum Cup Extensions
  • Forward Vacuum Cup Extensions
  • Counter Weight
  • Window Frame Carrier
  • Battery Powered Vacuum Pump
  • Foam Vacuum Pads for Stone



Lower Extension

Forward Extension


Counter Weight

Window Frame Carrier

Battery Powered
Vacuum Pump

Foam Vacuum Pads
for Stone

Convert to 4 cup machine:
H Frame (lifting arm) +
Extra vacuum cups

Vacuum Cups
for Curved Glass

SPECIFICATIONS

Lifting capacity: 200kg
Handles glass up to 3660 x 1500mm
Front castors retract for glazing
Vacuum Cups: 2 x 300mm
Solid rear 300mm wheels
Pivots glass 90° to side for doorways
Mast extends 250mm
360° glass rotation
Wider axle for greater stability
Side Shift for Glazing 80mm
Machine Weight with Vacuum Cups Removed - Top half 32kg, Bottom half 30kg
